梯 级 式、托 盘 式 电 缆 桥 架
    发布时间: 2018-10-15 17:46
梯 级 式、托 盘 式 电 缆 桥 架

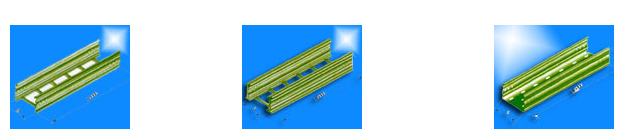

DJ-TI-01型梯级式大跨距桥架 DJ-TII-01 型梯级式大跨距桥架 DJ-PⅡ-01型托盘式大跨距桥架
型号 H （mm) B(mm) 重量kg 型号 H （mm) B(mm) 重量kg 型号 H （mm) B(mm) 重量kg
架体 盖板 架体 盖板 架体 盖板
T1-01-102 100


200

67.60 30.30 T1-01-102 100 200 133.20 33.33 T1-01-102 100 200 79.35 30.30
T1-01-103 300 89.38 42.48 T1-01-103 300 16..30 46.73 T1-01-103 300 100.18 42.48
T1-01-104 400 112.75 80.76 T1-01-104 400 184.40 88.84 T1-01-104 400 175.78 80.76
T1-01-105 500 124.15 99.63 T1-01-105 500 188.99 109.59 T1-01-105 500 191.44 99.63
T1-01-106 600 135.51 119.88 T1-01-106 600 193.58 131.87 T1-01-106 600 207.91 119.88
T1-01-108 800 143.50 155.55 T1-01-108 800 198.08 171.11 T1-01-108 800 224.54 155.55
T1-01-152 150 200 91.88 30.30 T1-01-152 150 200 181.31 33.33 T1-01-152 150 200 113.34 30.30
T1-01-153 300 101.43 42.48 T1-01-153 300 185.99 46.73 T1-01-153 300 138.07 42.48
T1-01-154 400 135.02 80.76 T1-01-154 400 195.08 88.84 T1-01-154 400 158.94 80.76
T1-01-155 500 146.16 99.63 T1-01-155 500 199.58 109.59 T1-01-155 500 220.09 99.63
T1-01-156 600 157.91 119.88 T1-01-156 600 204.30 131.87 T1-01-156 600 237.80 119.88
T1-01-158 800 167.38 155.55 T1-01-158 800 214.80 171.11 T1-01-158 800 256.71 155.55
T1-01-202 200 200 130.51 303.0 T1-01-202 200 200 268.18 33.33 T1-01-202 200 200 151.54 30.30
T1-01-203 300 143.56 42.48 T1-01-203 300 273.77 46.73 T1-01-203 300 205.40 42.48
T1-01-204 400 157.92 80.76 T1-01-204 400 278.36 88.84 T1-01-204 400 225.94 80.76
T1-01-205 500 173.71 99.63 T1-01-205 500 282.86 109.59 T1-01-205 500 248.53 99.63
T1-01-206 600 191.08 119.88 T1-01-206 600 287.58 131.87 T1-01-206 600 273.39 119.88
T1-01-208 800 230.20 155.55 T1-01-208 800 296.30 171.11 T1-01-208 800 330.80 155.55
